RF-BM-ND06

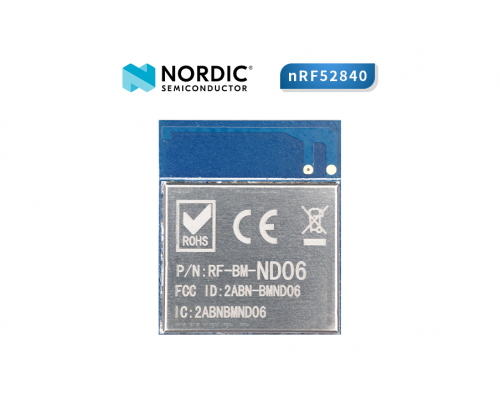

RF-BM-ND06（焊板封裝）是基于Nordic nRF52840多協議芯片的無線通信模塊，支持BLE 5.4、Proprietary、Matter、Thread、 Zigbee、ANT、NFC協議，擁有SPI, UART, SPI, I2C, PWM, I2S, PPI和PDM等豐富外設接口，提供藍牙5.0 UART透傳固件，支持主從一體，一主多從連接模式，也提供完整的配套資料和開發套件。該款串口透傳模塊還支持動態多協議同時運行，是互聯網網關，工業控制器和傳感器，智能插座和計量器，智能家居和樓宇自動化，醫療設備等應用的優選無線傳輸方案。

核心方案： nRF52840
支持協議：低功耗藍牙,藍牙Mesh,ZigBee,Thread,Matter
藍牙版本： 5.4
發射功率： +8dBm
通信距離： 200 m @ 1M PHY，430 m @ LE CODE
核心優勢：藍牙主從一體,一主多從,串口透傳,動態多協議,遠距離傳輸

樣品購買

無線通信方案廠商

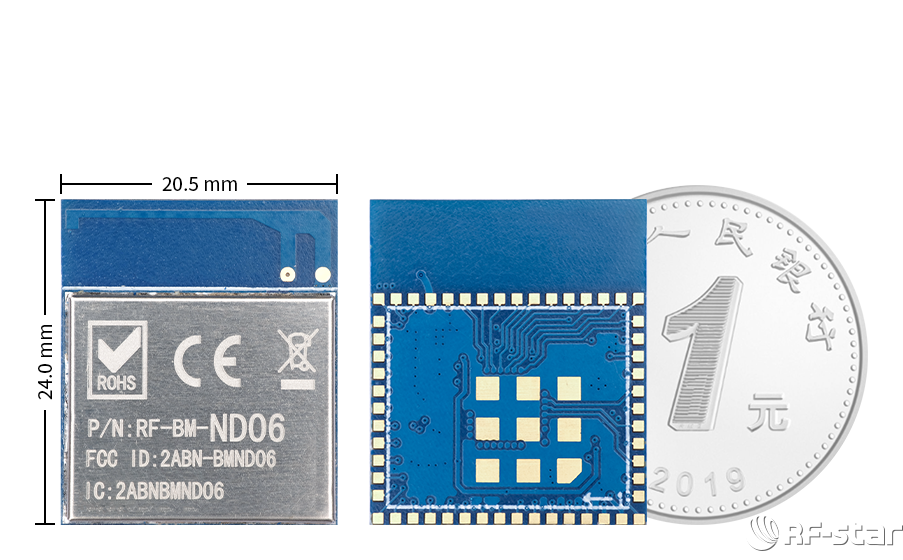

機械尺寸

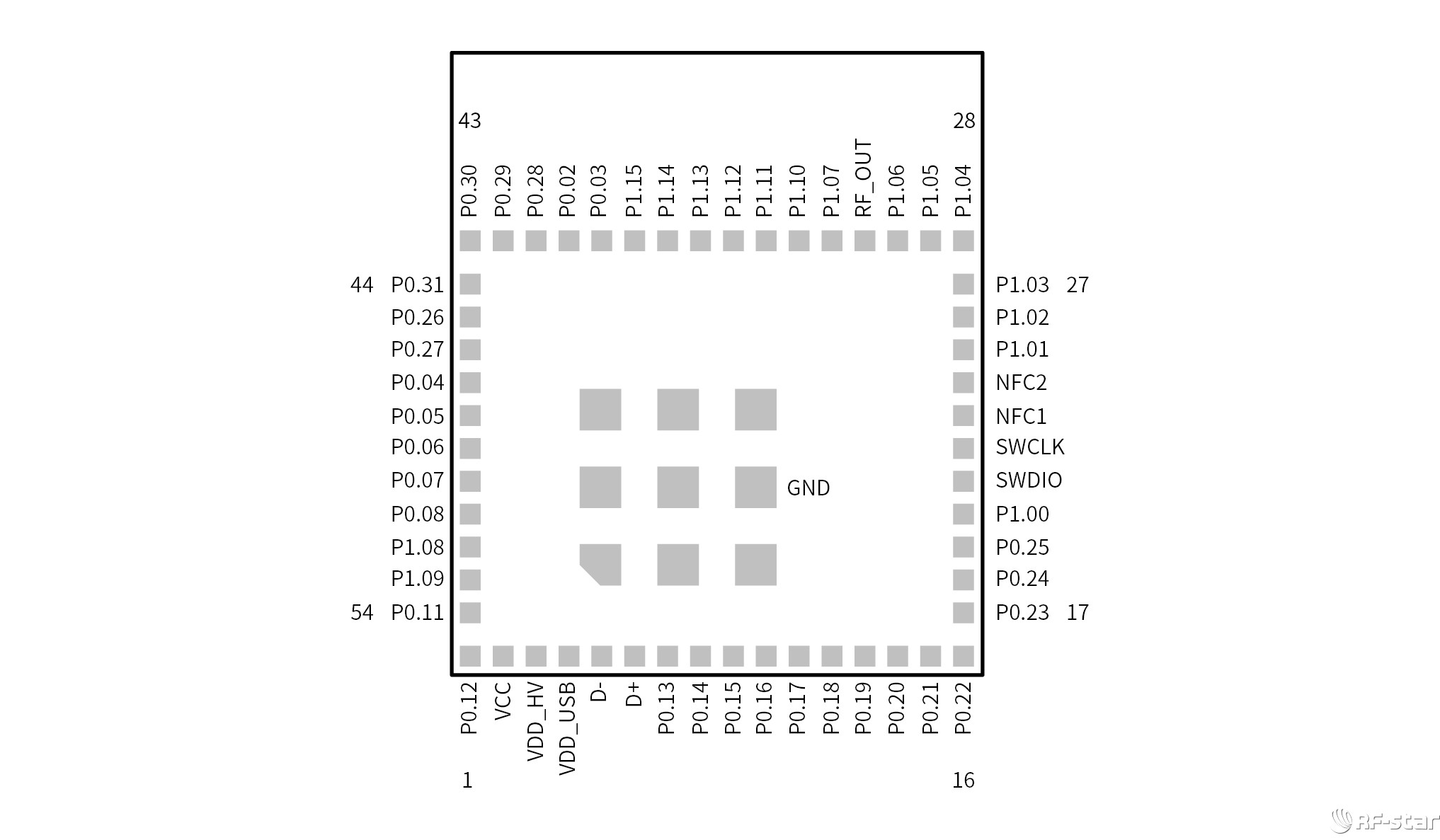

引腳定義

編號	名稱	功能	備注
1	P0.12	Digital I/O	GPIO
1	TRACEDATA1	Trace data	Trace buffer TRACEDATA[1]
2	VCC	—	1.7V - 3.6V
3	VDD_HV	—	2.5V - 5.5V
4	VDD_USB	—	4.35V - 5.5V
5	D-	Digital I/O	USB D-
6	D+	Digital I/O	USB D+
7	P0.13	Digital I/O	GPIO
8	P0.14	Digital I/O	GPIO
9	P0.15	Digital I/O	GPIO
10	P0.16	Digital I/O	GPIO
11	P0.17	Digital I/O	GPIO
12	P0.18	Digital I/O	GPIO、QSPI_CSN
12	nRESET	—	Configurable as pin RESET
13	P0.19	Digital I/O	GPIO、QSPI_SCK
14	P0.20	Digital I/O	GPIO
15	P0.21	Digital I/O	GPIO、QSPI
16	P0.22	Digital I/O	GPIO、QSPI
17	P0.23	Digital I/O	GPIO、QSPI
18	P0.24	Digital I/O	GPIO
19	P0.25	Digital I/O	GPIO
20	P1.00	Digital I/O	GPIO、QSPI
20	TRACEDATA0	Trace data	Trace buffer TRACEDATA[0]
21	SWDIO	—	仿真燒錄腳
22	SWCLK	—	仿真燒錄腳
23	P0.09	Digital I/O	Standard drive, low frequency I/O only
23	NFC1	NFC input	NFC antenna connection
24	P0.10	Digital I/O	Standard drive, low frequency I/O only
24	NFC2	NFC input	NFC antenna connection
25	P1.01	Digital I/O	GPIO, Standard drive, low frequency I/O only
26	P1.02	Digital I/O	GPIO, Standard drive, low frequency I/O only
27	P1.03	Digital I/O	GPIO, Standard drive, low frequency I/O only
28	P1.04	Digital I/O	GPIO, Standard drive, low frequency I/O only
29	P1.05	Digital I/O	GPIO, Standard drive, low frequency I/O only
30	P1.06	Digital I/O	GPIO, Standard drive, low frequency I/O only
31	RF_OUT	—
32	P1.07	Digital I/O	GPIO, Standard drive, low frequency I/O only
33	P1.10	Digital I/O	GPIO, Standard drive, low frequency I/O only
34	P1.11	Digital I/O	GPIO, Standard drive, low frequency I/O only
35	P1.12	Digital I/O	GPIO, Standard drive, low frequency I/O only
36	P1.13	Digital I/O	GPIO, Standard drive, low frequency I/O only
37	P1.14	Digital I/O	GPIO, Standard drive, low frequency I/O only
38	P1.15	Digital I/O	GPIO, Standard drive, low frequency I/O only
39	P0.03	Digital I/O	GPIO, Standard drive, low frequency I/O only
39	AIN1	Analog input
40	P0.02	Digital I/O	GPIO, Standard drive, low frequency I/O only
40	AIN0	Analog input
41	P0.28	Digital I/O	GPIO, Standard drive, low frequency I/O only
41	AIN4	Analog input
42	P0.29	Digital I/O	GPIO, Standard drive, low frequency I/O only
42	AIN5	Analog input
43	P0.30	Digital I/O	GPIO, Standard drive, low frequency I/O only
43	AIN6	Analog input
44	P0.31	Digital I/O	GPIO, Standard drive, low frequency I/O only
44	AIN7	Analog input
45	P0.26	Digital I/O	GPIO
46	P0.27	Digital I/O	GPIO
47	P0.04	Digital I/O	GPIO
47	AIN2	Analog input
48	P0.05	Digital I/O	GPIO
48	AIN3	Analog input
49	P0.06	Digital I/O	GPIO
50	P0.07	Digital I/O	GPIO
50	TRACECLK	Trace clock	Trace buffer clock
51	P0.08	Digital I/O	GPIO
52	P1.08	Digital I/O	GPIO
53	P1.09	Digital I/O	GPIO
53	TRACEDATA3	Trace data	Trace buffer TRACEDATA[3]
54	P0.11	Digital I/O	GPIO
54	TRACEDATA2	Trace data	Trace buffer TRACEDATA[2]
55 ~ 63	GND	—
